Discriminant Analysis โ€“ A Classification by Maximizing Class Separation

Machine Learning R

An Gentle Introduction of Discriminant Analysis & Its Applicant

Hai Nguyen
April 17, 2021

Linear Discriminant Analysis

Approach for multiclass classification.
A discriminant is a function that takes an input vector x and assigns to one of the multiple classes.

\[ Pr(y =๐‘˜\mid ๐‘‹=๐‘ฅ) = \frac{\pi_k f_k(x)}{\sum_{l=1}^K \pi_l f_l(x)} \]

where

\(\pi_k\): overall prior probability that a randomly chosen observation comes from the \(๐‘˜\)-th class
\(f_k(x)\): the density function of \(๐‘ฅ\)

Why Discriminant Analysis

  1. When the classes are well-separated, the parameter estimates for the logistic regression model are surprisingly unstable. Linear discriminant analysis does not suffer from this problem.
  2. If n is small and the distribution of the predictors X is approximately normal in each of the classes, the linear discriminant model is again more stable than the logistic regression model.
  3. Linear discriminant analysis is popular when we have more than two response classes, because it also provides low-dimensional views of the data.

Quadratic Discriminant Analysis

\[ Pr(y =๐‘˜\mid ๐‘‹=๐‘ฅ) = \frac{\pi_k f_k(x)}{\sum_{l=1}^K \pi_l f_l(x)} \]

where

\(\pi_k\): overall prior probability that a randomly chosen observation comes from the \(๐‘˜\)-th class
\(f_k(x)\): the density function of \(๐‘ฅ\)

LDA = \(f_k(x)\) are Gaussian densities, with the same covariance matrix \(\sum\) in each class.
QDA = With Gaussians but different \(\sum_k\) in each class, we get quadratic discriminant analysis.
NOTE = By proposing specific density models for \(f_k(x)\), including nonparametric approaches.

LDA vs QDA

The strengths of the LDA and QDA algorithms are:

The weaknesses of the LDA and QDA algorithms are:

When we should apply LDA vs QDA

  1. LDA needs lot less parameters than QDA.
  2. LDA is a much less flexible classifier than QDA \(\Rightarrow\) substantially low variance.
  3. If LDAโ€™s assumption of common covariance matrix is poor, then LDA has high bias.
  4. LDA better bet if training set is small so reducing variance is important.
  5. QDA better bet if training set is large so variance of classifier not a major concern.

Building our first linear and quadratic discriminant models

We have a tibble containing 178 cases and 14 variables of measurements made on various wine bottles: data are the results of a chemical analysis of wines grown in the same region in Italy but derived from three different cultivars.

The analysis determined the quantities of 13 constituents (Alcohol, Malic acid, Ash, Alcalinit of ash, Magnesium, Total phenols, Flavanoids, Nonflavanoid phenols, Proanthocyanins, Color intensity, Hue, OD280/OD315 of diluted wines, and Proline)found in each of the three types of wines.

#install.packages("mlr")
library(mlr)
library(tidyverse)
#install.packages("HDclassif")
data(wine, package = "HDclassif")
wineTib <- as_tibble(wine)
wineTib

# A tibble: 178 x 14
   class    V1    V2    V3    V4    V5    V6    V7    V8    V9   V10
   <int> <dbl> <dbl> <dbl> <dbl> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
 1     1  14.2  1.71  2.43  15.6   127  2.8   3.06 0.28   2.29  5.64
 2     1  13.2  1.78  2.14  11.2   100  2.65  2.76 0.26   1.28  4.38
 3     1  13.2  2.36  2.67  18.6   101  2.8   3.24 0.3    2.81  5.68
 4     1  14.4  1.95  2.5   16.8   113  3.85  3.49 0.24   2.18  7.8
 5     1  13.2  2.59  2.87  21     118  2.8   2.69 0.39   1.82  4.32
 6     1  14.2  1.76  2.45  15.2   112  3.27  3.39 0.34   1.97  6.75
 7     1  14.4  1.87  2.45  14.6    96  2.5   2.52 0.3    1.98  5.25
 8     1  14.1  2.15  2.61  17.6   121  2.6   2.51 0.31   1.25  5.05
 9     1  14.8  1.64  2.17  14      97  2.8   2.98 0.290  1.98  5.2
10     1  13.9  1.35  2.27  16      98  2.98  3.15 0.22   1.85  7.22
# ... with 168 more rows, and 3 more variables: V11 <dbl>, V12 <dbl>,
#   V13 <int>
names(wineTib) <- c("Class", "Alco", "Malic", "Ash", "Alk", "Mag",
                    "Phe", "Flav", "Non_flav", "Proan", "Col", "Hue",
                    "OD", "Prol")
wineTib$Class <- as.factor(wineTib$Class)
wineTib

# A tibble: 178 x 14
   Class  Alco Malic   Ash   Alk   Mag   Phe  Flav Non_flav Proan
   <fct> <dbl> <dbl> <dbl> <dbl> <int> <dbl> <dbl>    <dbl> <dbl>
 1 1      14.2  1.71  2.43  15.6   127  2.8   3.06    0.28   2.29
 2 1      13.2  1.78  2.14  11.2   100  2.65  2.76    0.26   1.28
 3 1      13.2  2.36  2.67  18.6   101  2.8   3.24    0.3    2.81
 4 1      14.4  1.95  2.5   16.8   113  3.85  3.49    0.24   2.18
 5 1      13.2  2.59  2.87  21     118  2.8   2.69    0.39   1.82
 6 1      14.2  1.76  2.45  15.2   112  3.27  3.39    0.34   1.97
 7 1      14.4  1.87  2.45  14.6    96  2.5   2.52    0.3    1.98
 8 1      14.1  2.15  2.61  17.6   121  2.6   2.51    0.31   1.25
 9 1      14.8  1.64  2.17  14      97  2.8   2.98    0.290  1.98
10 1      13.9  1.35  2.27  16      98  2.98  3.15    0.22   1.85
# ... with 168 more rows, and 4 more variables: Col <dbl>, Hue <dbl>,
#   OD <dbl>, Prol <int>

We got:
- 13 continuous measurements made on 178 bottles of wine, where each measurement is the amount of a different compound/element in the wine.
- Class: vineyard the bottle comes from.

wineUntidy <- gather(wineTib, "Variable", "Value", -Class)
ggplot(wineUntidy, aes(Class, Value)) +
  facet_wrap(~ Variable, scales = "free_y") +
  geom_boxplot() +
  theme_bw()


Box and whisker plots of each continuous variable in the data against vineyard number. For the box and whiskers: the thick horizontal line represents the median, the box represents the interquartile range (IQR), the whiskers represent the Tukey range (1.5 times the IQR above and below the quartiles), and the dots represent data outside of the Tukey range.

Creating the task and learner, and training the LDA model

wineTask <- makeClassifTask(data = wineTib, target = "Class")
lda <- makeLearner("classif.lda")
ldaModel <- train(lda, wineTask)

Extracting discriminant function values for each case

ldaModelData <- getLearnerModel(ldaModel)
ldaPreds <- predict(ldaModelData)$x
head(ldaPreds)

        LD1       LD2
1 -4.700244 1.9791383
2 -4.301958 1.1704129
3 -3.420720 1.4291014
4 -4.205754 4.0028715
5 -1.509982 0.4512239
6 -4.518689 3.2131376

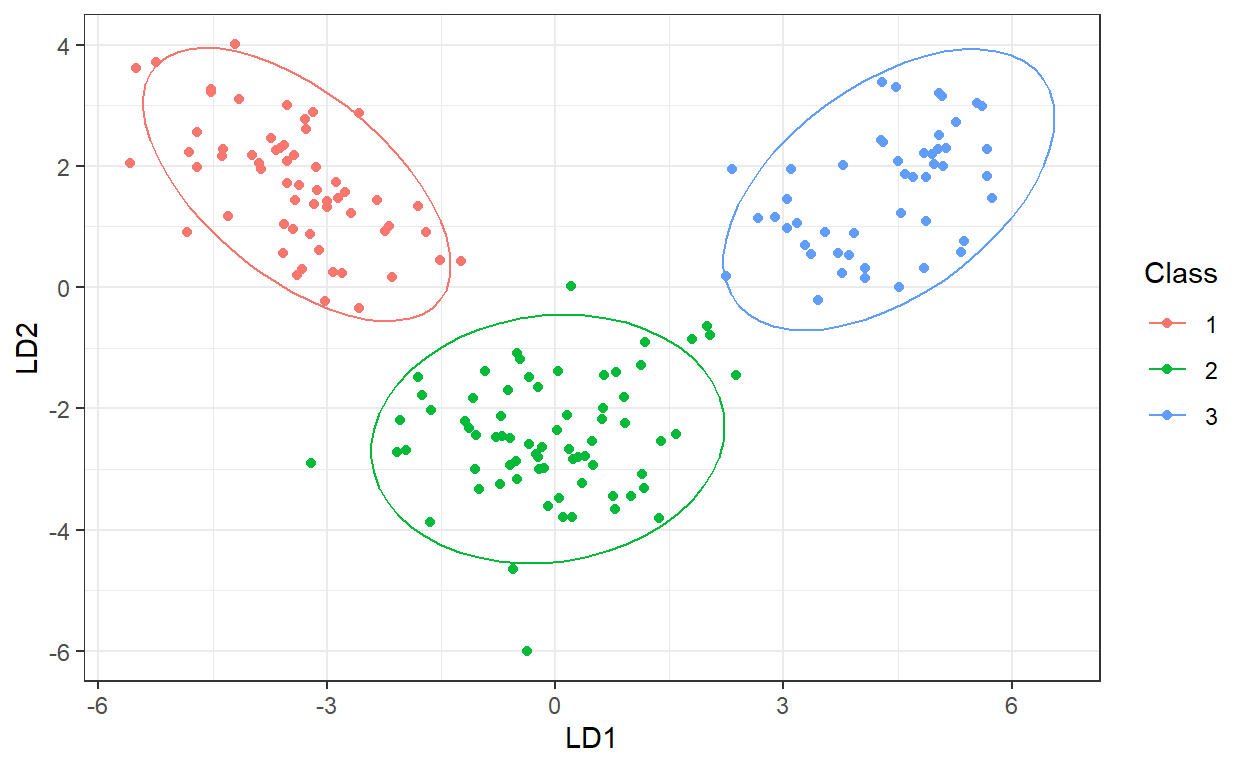

Plotting the discriminant function values against each other

wineTib %>%
  mutate(LD1 = ldaPreds[, 1],
         LD2 = ldaPreds[, 2]) %>%
  ggplot(aes(LD1, LD2, col = Class)) +
    geom_point() +
    stat_ellipse() +
    theme_bw()

Creating the task and learner, and training the QDA model

qda <- makeLearner("classif.qda")
qdaModel <- train(qda, wineTask)

Cross-validating the LDA and QDA models

kFold <- makeResampleDesc(method = "RepCV", folds = 10, reps = 50,
stratify = TRUE)

ldaCV <- resample(learner = lda, task = wineTask, resampling = kFold,
measures = list(mmce, acc))

qdaCV <- resample(learner = qda, task = wineTask, resampling = kFold,
measures = list(mmce, acc))

ldaCV$aggr

mmce.test.mean  acc.test.mean
    0.01133544     0.98866456
qdaCV$aggr

mmce.test.mean  acc.test.mean
   0.008314886    0.991685114

Calculating confusion matrices

calculateConfusionMatrix(ldaCV$pred, relative = TRUE)

Relative confusion matrix (normalized by row/column):
        predicted
true     1           2           3           -err.-
  1      0.999/1e+00 0.001/9e-04 0.000/0e+00 0.001
  2      0.010/1e-02 0.977/1e+00 0.014/2e-02 0.023
  3      0.000/0e+00 0.007/5e-03 0.993/1e+00 0.007
  -err.-       0.011       0.005       0.020 0.01


Absolute confusion matrix:
        predicted
true        1    2    3 -err.-
  1      2947    3    0      3
  2        34 3468   48     82
  3         0   16 2384     16
  -err.-   34   19   48    101
calculateConfusionMatrix(qdaCV$pred, relative = TRUE)

Relative confusion matrix (normalized by row/column):
        predicted
true     1           2           3           -err.-
  1      0.994/0.984 0.006/0.005 0.000/0.000 0.006
  2      0.014/0.016 0.986/0.993 0.000/0.000 0.014
  3      0.000/0.000 0.004/0.003 0.996/1.000 0.004
  -err.-       0.016       0.007       0.000 0.008


Absolute confusion matrix:
        predicted
true        1    2    3 -err.-
  1      2933   17    0     17
  2        48 3502    0     48
  3         0    9 2391      9
  -err.-   48   26    0     74

Predicting which vineyard the poisoned wine came from

poisoned <- tibble(Alco = 13, Malic = 2, Ash = 2.2, Alk = 19, Mag = 100,
                   Phe = 2.3, Flav = 2.5, Non_flav = 0.35, Proan = 1.7,
                   Col = 4, Hue = 1.1, OD = 3, Prol = 750)
predict(qdaModel, newdata = poisoned)

Prediction: 1 observations
predict.type: response
threshold:
time: 0.00
  response
1        1

The model predicts that the poisoned bottle came from vineyard 1.

Hereโ€™s we ends the analytic example.

References

Hastie, T., Tibshirani, R., & Friedman, J. (2017). The Elements of Statistical Learning: Data Mining, Inference, and Prediction, Second Edition. New York, NY: Springer New York.

Rhys, H. (2020). Machine Learning with R, the tidyverse, and mlr (1st edition ed.): Manning Publications.
